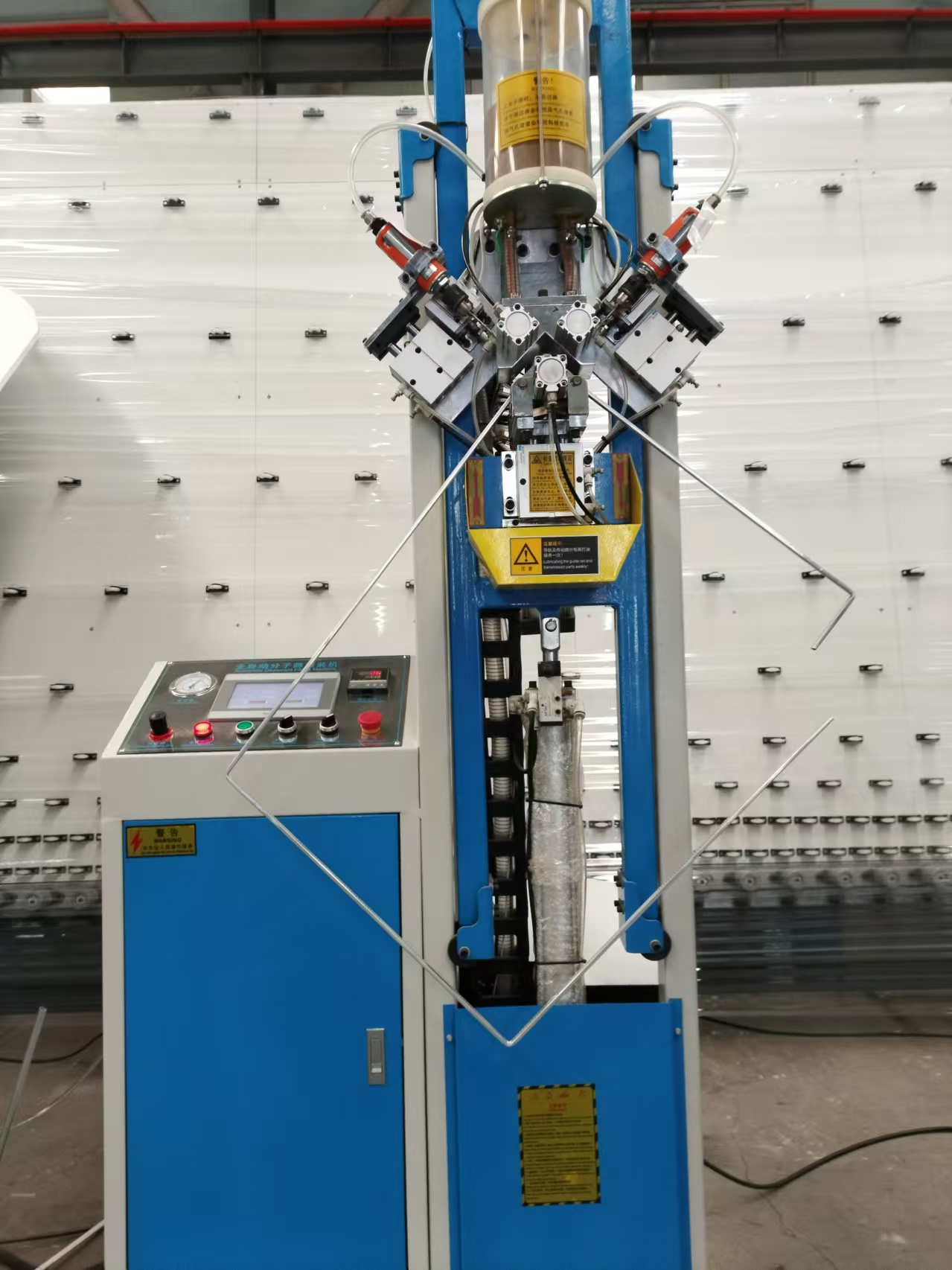

Automatic Desiccant Filling Machine

Automatic Desiccant Filling Machine
Available Models:
JYG-03
1.This machine is used for automatic filling of desiccant into aluminum spacers
2.With PLC intelligent control and advanced feeding system
Tel: +86 185 6372 1087
Tel: +86 185 6372 1087
Contact Email: info@jingyouglassmachine.com

Product Introduction

Available Models:

JYG-03

1.This machine is used for automatic filling of desiccant into aluminum spacers
2.With PLC intelligent control and advanced feeding system


Key Features

1.PLC control system with user-friendly interface.

2.Key components adopt imported brands for reliability.

3.Automatic hole drilling, filling, and sealing in one process.

4.Filling volume adjustable according to spacer size.

5.Exclusive feeding system allows continuous or supplementary filling.

6.Stable operation with high precision.


Technical Specifications

Parameter

JYG-03 - Detailed Specifications

Power supply

220V / 50Hz

Total power

1.0 kW

Working air pressure

0.5 ~ 0.8 MPa

Max. Alu-bar size

2000 × 2000 mm

Min. Alu-bar size

350 × 350 mm

Molecular sieve diameter

0.5 ~ 0.8 mm

Overall dimension

900 × 1200 × 3600 mm

Weight

420 kg
