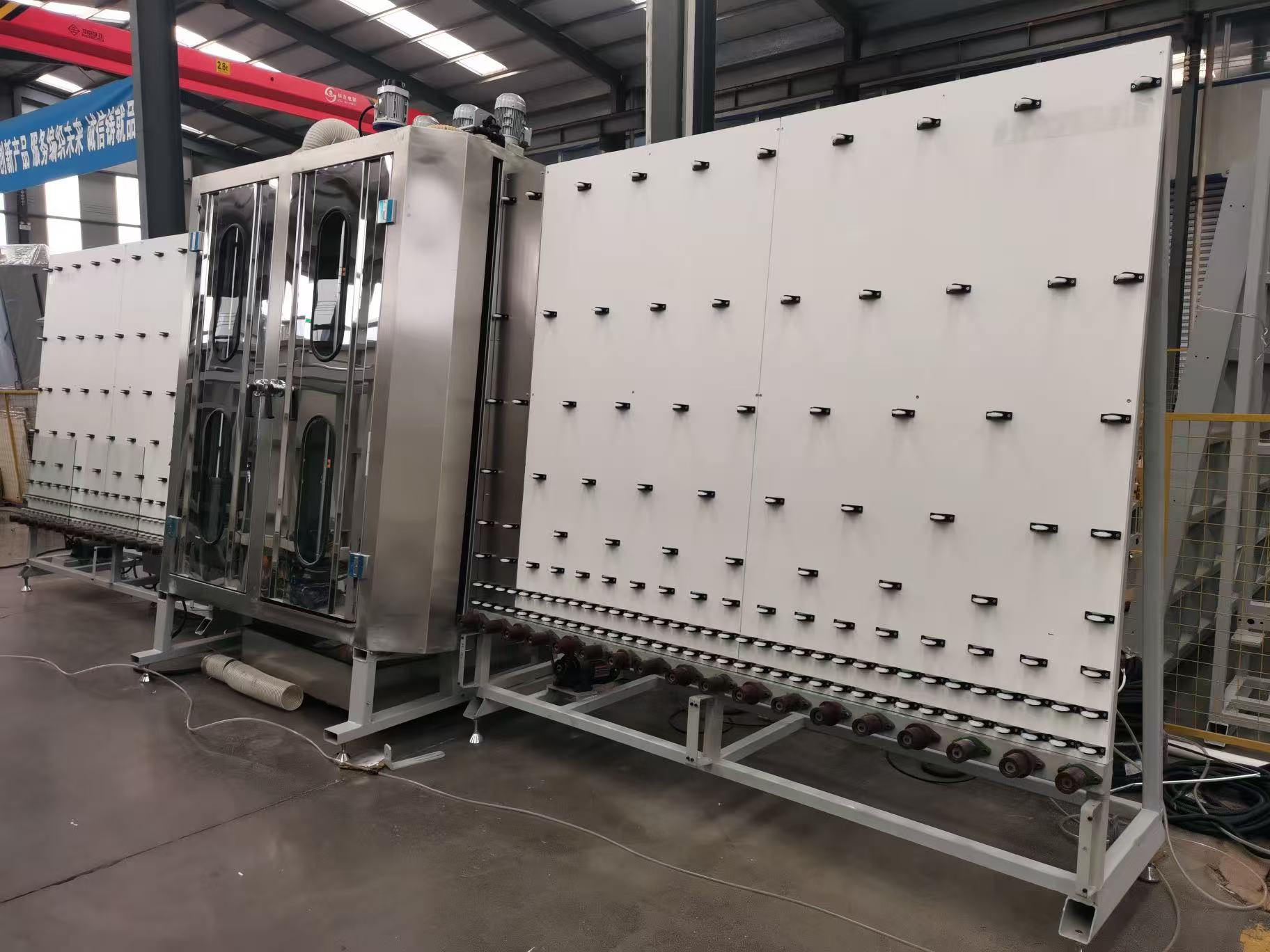

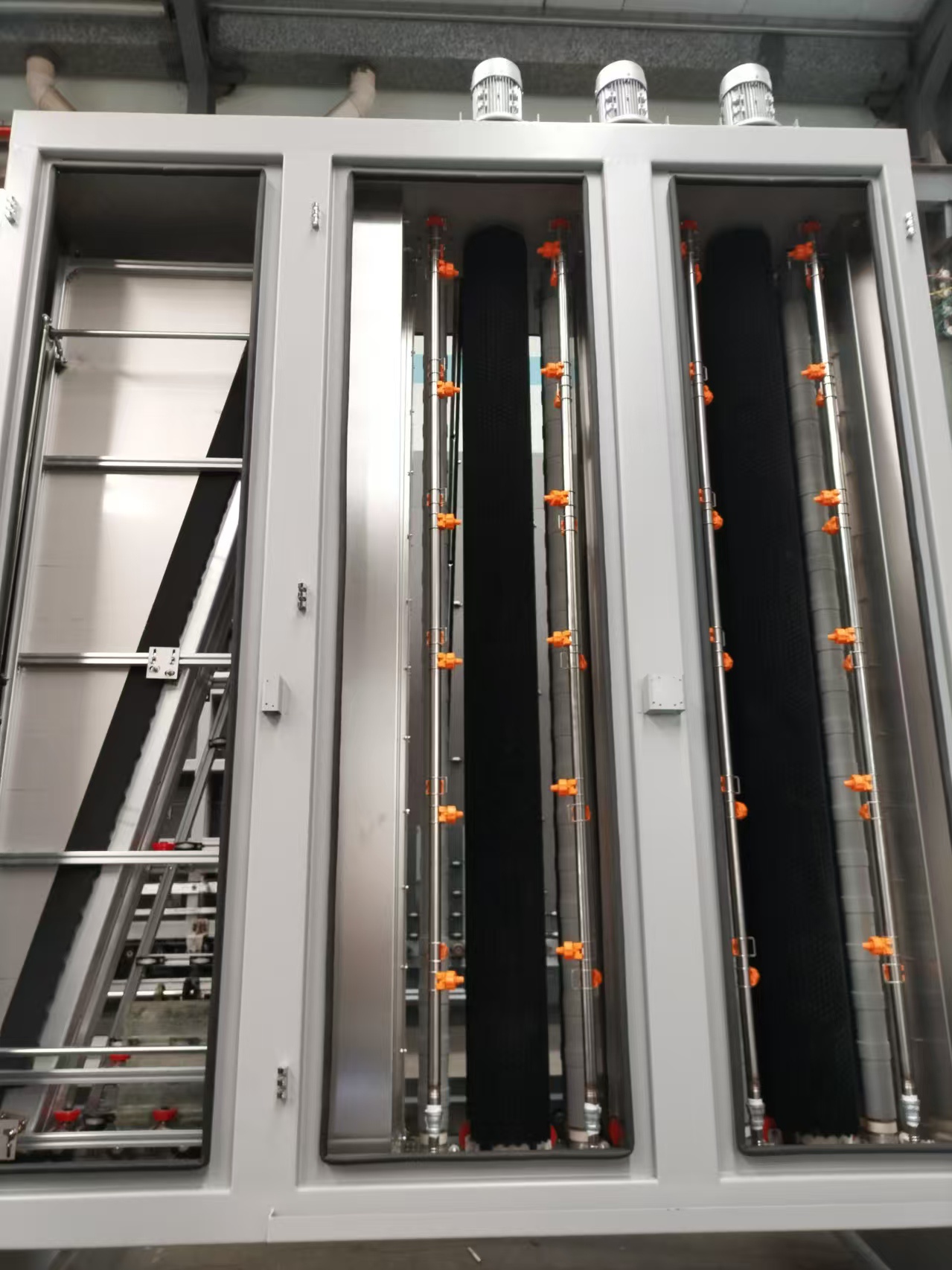

Vertical Glass Washing Machine

Vertical Glass Washing Machine
Available Models:
JY-2000
1.This washing machine is built with a full stainless steel cleaning and water system, ensuring durability and long service life.
2.With its intelligent transmission and unique drying design, it provides efficient cleaning, excellent drying performance, and reduced energy consumption.
Tel: +86 185 6372 1087
Tel: +86 185 6372 1087
Contact Email: info@jingyouglassmachine.com

Product Introduction

Available Models:

JY-2000

1.This washing machine is built with a full stainless steel cleaning and water system, ensuring durability and long service life.
2.With its intelligent transmission and unique drying design, it provides efficient cleaning, excellent drying performance, and reduced energy consumption.


Detailed Features

1.Cleaning and water systems made entirely of stainless steel, durable.

2.Floating transmission design, suitable for 3–18mm glass thickness.

3.Intelligent frequency conversion system for efficient operation.

4.Stable cleaning performance with adjustable transmission speed.

5.Unique drying design ensures effective drying with low energy use.

6.High adaptability for different glass types and thickness ranges.


Technical Specifications

Parameter

JY-2000 - Detailed Specifications

Power supply

380V / 50Hz

Total power

19.0 kW

Max. glass size

2000×2500 mm

Min. glass size

280×450 mm

Glass thickness

3 ~ 18 mm

Transmission speed

0 ~ 12 m/min

Working air pressure

0.5 ~ 0.8 MPa

Overall dimension

7600×2100×3200 mm

Weight

3000 kg
