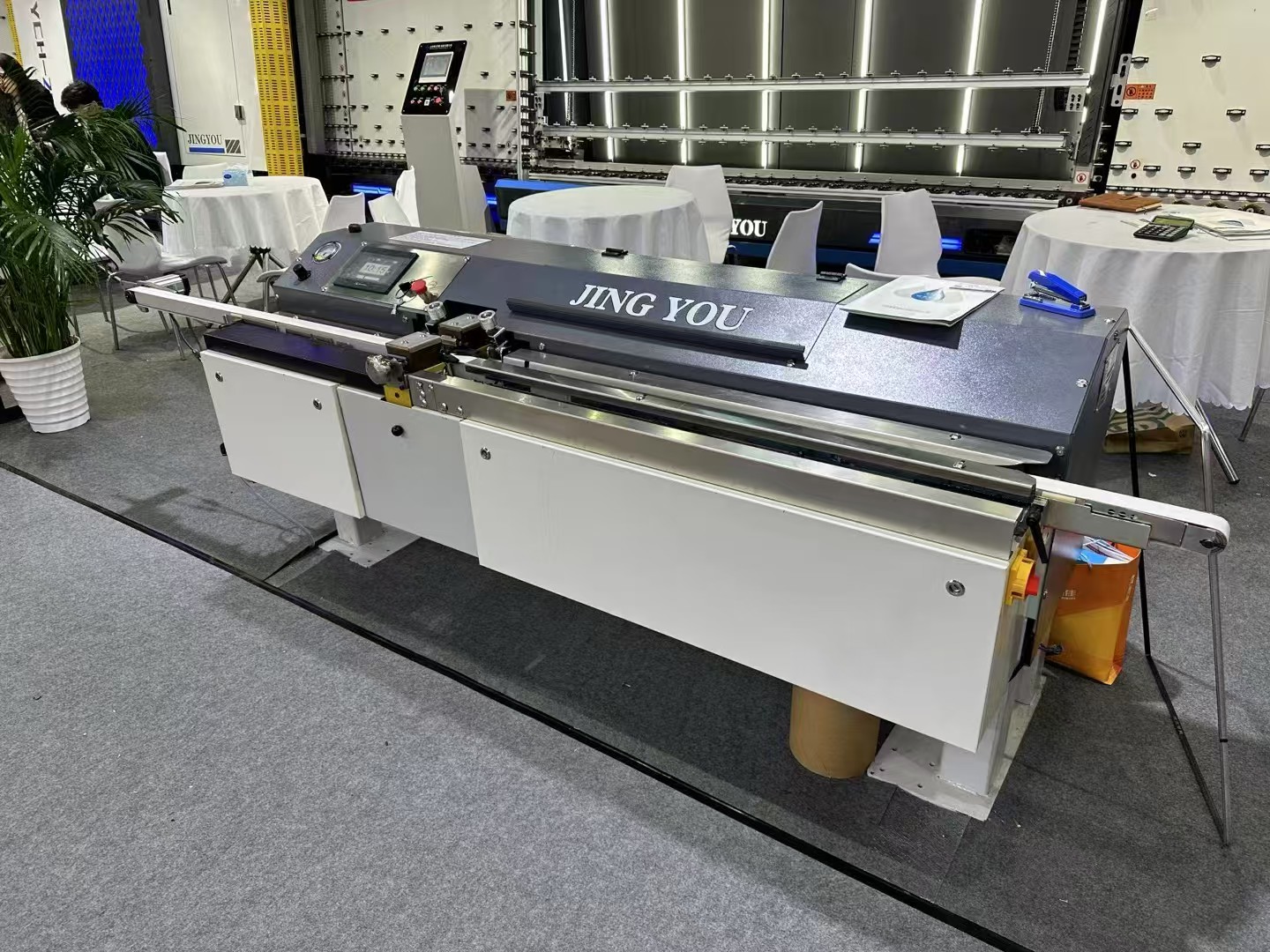

All Servo Butyl Coating Machine

All Servo Butyl Coating Machine
JYJ-03
1.This machine is advanced butyl sealing machine for aluminum spacer
2. The width of glue nozzle and tranmission belt all adjusted by servo motor
Tel: +86 185 6372 1087
Tel: +86 185 6372 1087
Contact Email: info@jingyouglassmachine.com

Product Introduction

Available Models:

JYJ-03

1.This machine is advanced butyl sealing machine for aluminum spacer
2. The width of glue nozzle and tranmission belt all adjusted by servo motor


Key Features

1.Touch screen interface with PLC intelligent control.

2.Digital control of glue discharge and stop timing.

3.Automatic no-glue display for safety and quality control.

4.Servo system to adjust width of the spacer width


Technical Specifications

Parameter

JYJ-03 - Detailed Specifications

Power supply

380V / 50Hz

Total power

3.0 kW

Working air pressure

0.6 ~ 0.8 MPa

Extruding pressure

12 ~ 16 MPa

Glue speed

0 ~ 50 m/min

Rubber cylinder diameter

195 mm

Adjustable rubber head

4 ~ 27 mm

Overall dimension

3000 × 740 × 340 mm
